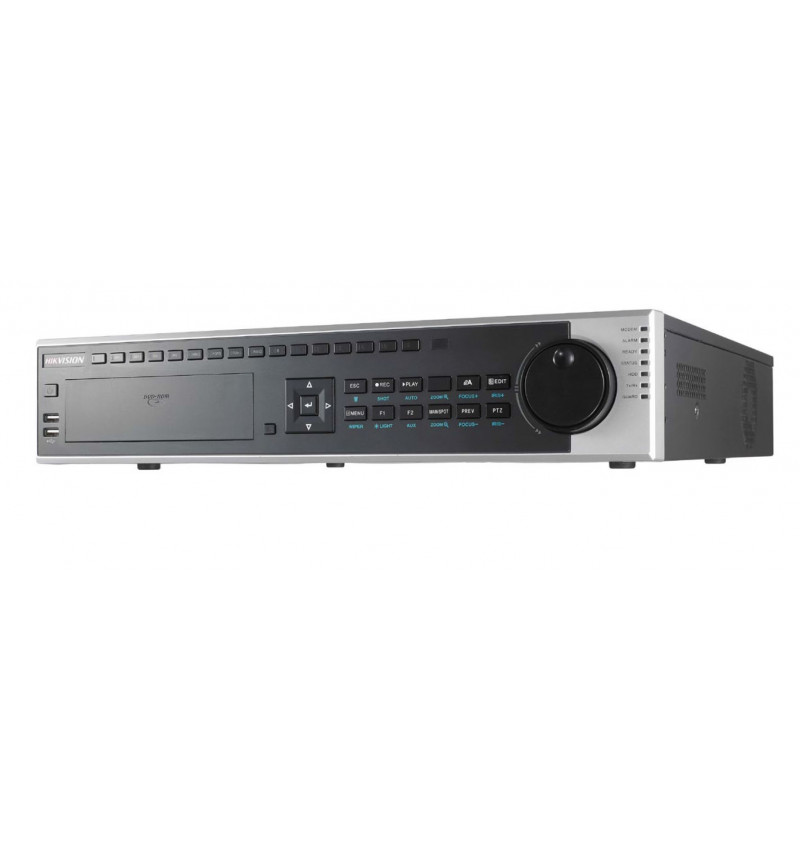

Hikvision NVR DS-8632NI-K8
- 32 kanalai
- Įrašymo raiška iki 8MP
- H.265/H.265+/H.264/H.264+/MPEG4
- VGA, HDMI išėjimai
- Iki 8 HDD
- Aliarmo I/O: 16/4
1267.89€ (su PVM)
Išankstinis užsakymas
Išankstinis užsakymas
Aprašymas
| Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF |
| Decoding format | H.265/ H.265+/H.264/H.264+/MPEG4 |
| Synchronous playback | 16-ch |
| Capability | 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps) |
| SATA | 8 SATA interfaces |
| eSATA (optional) | 1 eSATA interface |
| Capacity | Up to 6 TB capacity for each HDD |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Network interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Serial port | RS-232; RS-485; Keyboard |
| USB interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm in/out | 16/4 |
| IP video input | 32-ch |
| Incoming/outgoing bandwidth | 160 Mbps or 256 Mbps |
| VGA1 /HDMI1 output | HDMI1: 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, |
| VGA2 /HDMI2 output | VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA2: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, |
| Audio output | 2-ch, RCA (Linear, 1 K Ω) |
| Network protocols | TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Max. Power | 200 W |
| Power supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption (without HDD) | ≤ 30 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10 to 90 % |
| Dimensions (W × D × H) | 445 × 470 × 90 mm (17.5″ × 18.5″ × 3.5″) |
| Weight (without hard disk) | ≤ 8 kg (17.6 lb) |
| Chassis | 19-inch rack-mounted 2U chassis |
Papildoma informacija
| Gamintojas | HIKVISION |
|---|
