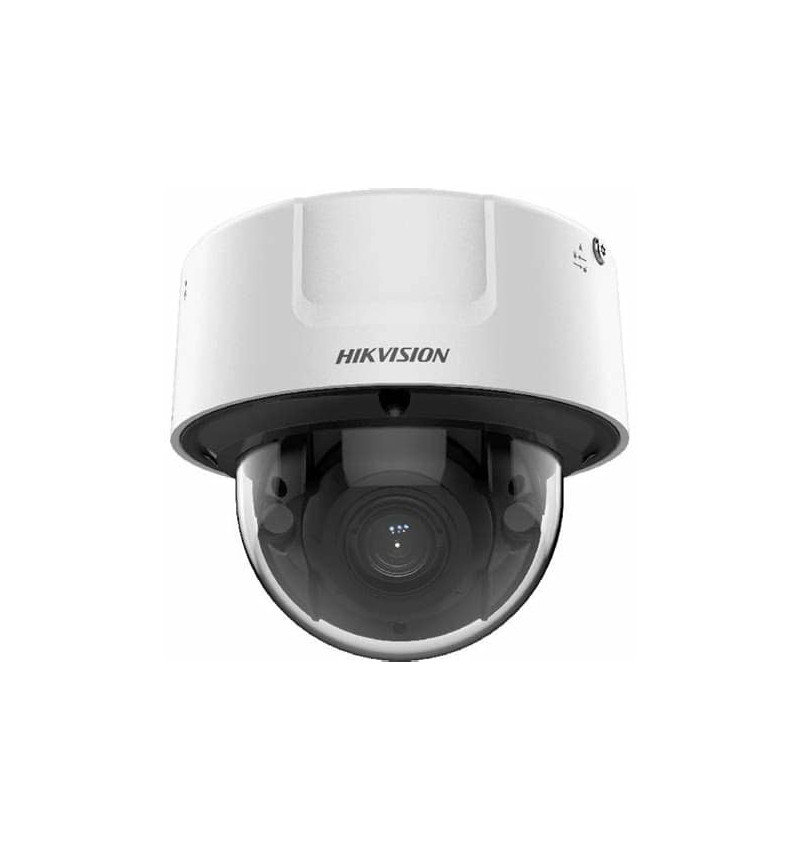

Hikvision dome DS-2CD7146G0-IZS F2.8-12

Aprašymas

Kamera

• Sensorius: 1/1.8″ Progressive Scan CMOS
• Min. apšvietimas: Color: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0003 Lux @ (F1.2, AGC ON)
• Užrakto greitis: 1 s to 1/100,000 s
• Lėtas užraktas: Yes
• Platus dinaminis diapazonas: 140 dB
• Diena & Naktis: IR cut filter
• Kampo pasirinkimas: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
• Išjungimo atmintis: Yes

Lęšiai

• Fokusavimas: Auto, semi-auto, manual
• Lęšių tipai & FOV: 2.8 to 12 mm, horizontal FOV 114.5° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.1° to 48°
• Diafragma: 2.8 to 12 mm: F1.2 to 2.5
• Lęšių montavimas: Integrated
• Mėlyno stiklo modulis: Blue glass module to reduce ghost phenomenon.
• P-Iris: Yes

Apšvietimas

• IR nuotolis: 2.8 to 12 mm: 30 m
• Bangų ilgis: 850 nm
• Išmani pagalbinė šviesa: Yes

Video

• Maks. raiška: 2680 × 1520
• Pagrindinis srautas: 50Hz: 25fps (2680 × 1520,2560 × 1440,1920 × 1080,1280 × 720); 60Hz: 30fps (2680 × 1520,2560 × 1440,1920 × 1080,1280 × 720);
• Pagalbinis srautas: 50Hz: 25fps (704 × 576, 640 × 480); 60Hz: 30fps (704 × 480, 640 × 480);
• Tretinis srautas: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480);
• Ketvirtas srautas: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480);
• Penktas srautas: 50Hz: 25fps (704 × 576, 640 × 480); 60Hz: 30fps (704 × 480, 640 × 480);
• Pasirinktinis srautas: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480);
• Vaizdo suspaudimas: Main stream: H.265+/H.265/H.264+/ H.264; Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream: H.265/H.264/MJPEG;
• Vaizdo bitų greitis: 32 Kbps to 16 Mbps
• H.264 tipas: Baseline Profile/Main Profile/High Profile
• H.265 tipas: Main Profile
• H.264+Main Stream supports
• H.265+Main Stream supports
• Bitų dažnio kontroliavimas: CBR/VBR
• Srauto tipai: Main stream/Sub-stream/third stream/fourth stream/fifth stream/custom stream
• SVC: H.265 and H.264 support
• ROI: 4 fixed regions for each stream

Garsas

• Aplinkos triukšmo filtravimas: Yes
• Garso įrašų dažnis: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Garso suspaudimas: G.711/G.722.1/G.726/MP2L2/PCM/MP3
• Garso bitų greitis: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)
• Garso tipas: Mono sound

Tinklas

• Tiesioginis vaizdo žiūrėjimas: Up to 20 channels
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Sklandus srautas: Yes
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Saugumas: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Interneto saugykla

• microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Klientas: iVMS-4200, Hik-Connect, Hik-Central
• Interneto naršyklės: Plug-in required live view: IE8+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+; Local service: Chrome 41.0+, Firefox 30.0+

Vaizdas

• Išmanus įvykiai: IRThe IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
• Dienos/Nakties jungiklis: Day, Night, Auto, Schedule, Triggered by Alarm In
• Elementų iškirpimas: Yes
• Paveikslėlio perdanga: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Vaizdo gerinimas: BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
• Vaizdo nustatymų keitimas: Yes
• Vaizdo nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR: ≥52 dB

Sąsaja

• Signalizacija: 1 input, 1 output (max. 24 VDC, 1 A)
• Garsas: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound,1 built-in microphone
• RS-485:  1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Vaizdo išvestis: 1 Vp-p Composite Output(75Ω/CVBS)(Only for Debug)
• Vidinė atmintis: Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Aparatinės įrangos atkūrimas: Yes
• Bendravimo sąsaja: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
• Energijos išvestis: 12 VDC, max. 200 mA (supported by all power supply types)

Funkcijos

• Paprastos funkcijos: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Išmanios funkcijos

Line crossing detection, up to 4 lines configurable

Intrusion detection, up to 4 regions configurable

Region entrance detection, up to 4 regions configurable

Region exiting detection, up to 4 regions configurable

Unattended baggage detection, up to 4 regions configurable

Object removal detection, up to 4 regions configurable

Scene change detection, audio exception detection, defocus detection

• Skaičiavimas: Yes

Gilaus mokymosi funkcijos

• Veido atpažinimas

  Detects up to 30 faces simultaneously;

  Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;

  Up to 3 face libraries with up to 30000 faces each are configurable;

  Recognizes face identity via face modeling, grading and comparing to those in face library;

  Supports face library encryption.

• Kelių elementų vienu metu atpažinimas

  Supports simultaneous detection of human body and face

  Gets 8 face features and 14 human body features

• Veidų skaičiavimas

  Supports entering/exiting counting (track 30 targets simultaneously);

  Supports facial recognition;

  Supports 24-hour dynamic deduplication and face library deduplication (up to 3 face libraries with up to 30000 faces);

  Supports reporting alarms when detecting the face is the same as that in the face library.

• Šalmų aptikimas

  Detects up to 30 human targets simultaneously

  Supports up to 4 shield regions

• Eilių analizavimas

  Detects queuing-up people number, and waiting time of each person

  Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

  Supports raw data export for further analysis

• Premier apsauga

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

  Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.

Pagrindinis

• Sujungimo metodai

  Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

  Trigger recording：memory card, network storage, pre-record and post-record

  Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email

  Trigger notification: HTTP, ISAPI, alarm output, Email

• Internetiniai atnaujinimai: Yes
• Dvigubas atsarginės kopijos sukūrimas: Yes
• Programinės-aparatinės įrangos versija: V5.5.121
• Meniu kalbos: 33 kalbos – (English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian)
• Pagrindinės funkcijos: Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Programinės įrangos atkūrimas: Yes
• Laikymo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
• Paleidimo ir veikimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F)
• Energijos šaltinis: 12 VDC ± 20%, two-core terminal block, reverse polarity protection; 24 VAC ± 20%; PoE: 802.3af, Type 1 Class 3;
• Energijos suvartojimas ir galia: 12 VDC, 0.83 A, max. 9.96 W; 24 VAC, 0.85 A, max. 12 W; PoE(802.3af, 36 V to 57 V), 0.35 A to 0.21 A, max. 12 W;
• Maitinimo sąsaja: Two-core terminal block
• Kameros medžiaga: Aluminum alloy body
• kameros matmenys: Ø140.5 × 122.6 mm (Ø5.5″ × 4.8″)
• Pakuotės matmenys: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
• Kameros svoris: Approx. 950 g (2.1 lb.)
• Svoris su pakuote: Approx. 1300 g (2.9 lb.)

Meta duomenys

• Meta duomenys: Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture and queue management are supported.
