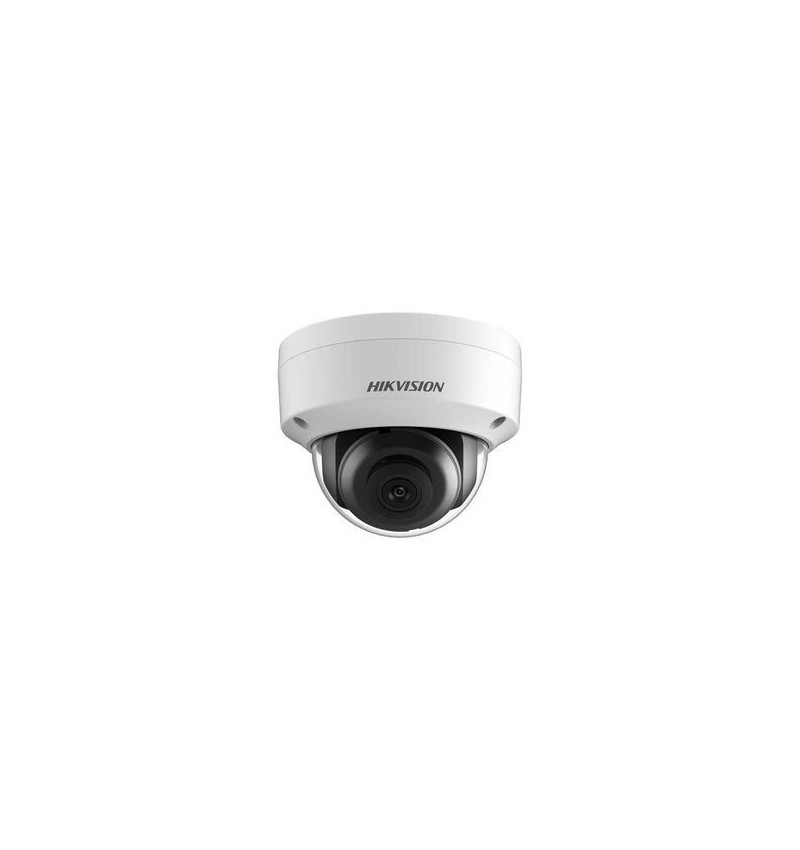

Hikvision dome DS-2CD2183G0-IU F2.8; F4; F6
- Hikvision dome DS-2CD2183G0-IU
- 8Mp IP dome kamera
- 1/2.5″ Progressive Scan CMOS
- Objektyvai: 2,8 mm / 4 mm / 6 mm (pažymėti užsakant pastabose)
- 3840 × 2160@15fps
- H.265, H.265+, H.264, H.264+
- Trys srautai
- 120dB WDR
- IR atstumas: iki 30 m
- IP66, IK10
- Mikro SD/SDHC/SDXC kortelė, iki 128 GB
- Valdymas 3 ašimis
- Mikrofonas
266.25€ (su PVM)
Išankstinis užsakymas
Išankstinis užsakymas
Aprašymas
| Image Sensor | 1/2.5″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day &Night | IR Cut Filter |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| DNR | 3D DNR |
| Lens | Fixed lens, 2.8/4/6 mm |
| Auto-Iris | No |
| Aperture | F2.0 |
| Focus | Fixed |
| FOV | 2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° ;
4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95° ; 6 mm, horizontal FOV: 50°, vertical FOV: 28°, diagonal FOV: 59° |
| Lens Mount | M12 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
| Video Compression | Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| SVC | H.264 and H.265 encoding support |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Behavior Analysis | Line crossing detection, intrusion detection |
| Region of Interest | Support 1 fixed region for main stream and sub-stream |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Setting | Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Target Cropping | No |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | 1 audio input (built-in microphone), mono sound |
| Video Output | No |
| On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Firmware Version | 5.5.84 |
| General Function | Anti-flicker, three streams, heartbeat, mirror, 4 regions of privacy mask |
| Reset | Yes |
| Startup and Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, Φ 5.5mm ,PoE(802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.6 A, max. 7 W; PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.5 W |
| Material | Metal |
| Dimensions | Camera: Φ 127.3 × 95.9 mm (5″ × 3. 8″),Package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Weight | Camera: Approx. 560 g (1.2 lb.) ;With package: Approx. 800 g (1.8 lb.) |
| Interface Protection | IP66 |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Face Detection | Yes |
Papildoma informacija
| Gamintojas | HIKVISION |
|---|---|
| Kameros raiška | 8MP |
