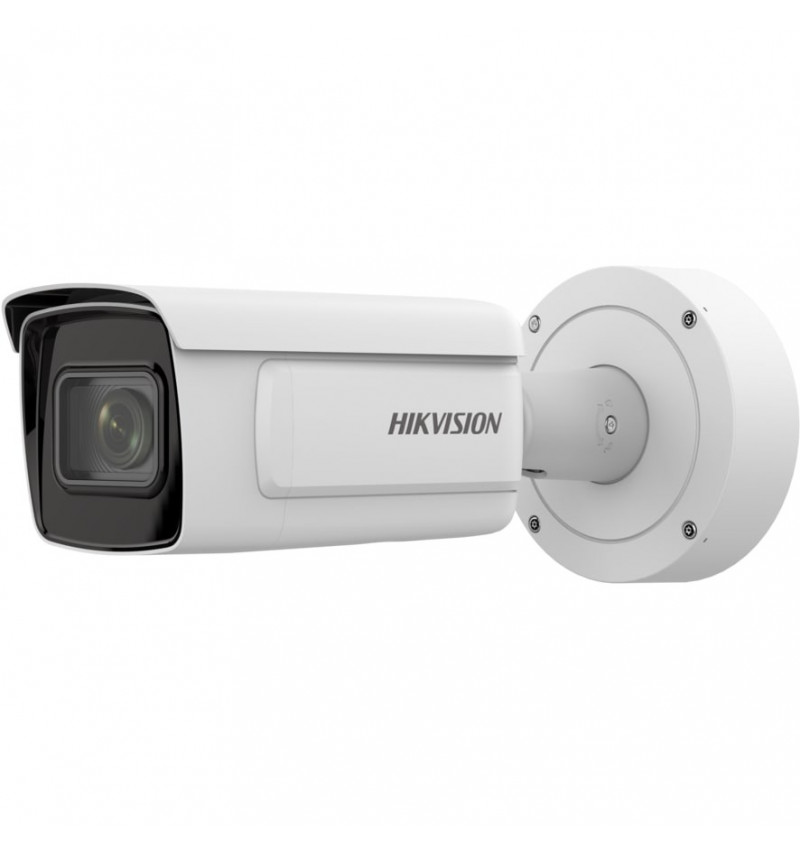

Hikvision bullet iDS-2CD7A46G0-IZHS F8-32

Aprašymas

Kamera

• Sensorius:  1/1.8″ Progressive Scan CMOS
• Min. apšvietimas:  Color: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0003 Lux @ (F1.2, AGC ON)
• Užsisklendimas:  1 s to 1/100,000 s
• Lėtas užsisklendimas:  Yes
• Platus dinaminis apšvietimas:  140 dB
• Dienas & Naktis:  IR cut filter
• Išsijungimo atmintis:  Yes

Lęšiai

• Fokusavimas: Auto, semi-auto, manual
• Lęšių tipai & FOV:  horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3
• Diafragma:  F1.7 to F1.73
• Lęšių montavimas:  Integrated
• Mėlyno stiklo modulis:  Blue glass module to reduce ghost phenomenon.
• P-Iris:  Yes

Apšvietimas

• IR diapozonas:  100 m
• Bangų ilgis:  850 nm
• Išmani pagalbinė šviesa:  Yes

Vaizdas

• Maks. raiška:  2680 ×1520
• Pagrindinis srautas

  50Hz: 25fps (2680 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

  60Hz: 30fps (2680 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

• Pagalbinis srautas

  50Hz: 25fps (704 × 576, 640 × 480)

  60Hz: 30fps (704 × 480, 640 × 480)

• Tretinis srautas

  50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Ketvirtas srautas

  50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Penktas srautas

  50Hz: 25fps (704 × 576, 640 × 480)

  60Hz: 30fps (704 × 480, 640 × 480)

• Redaguojamas srautas

  50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Vaizdo suspaudimas

  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG

• Vaizdo bitų greitis:  32 Kbps to 16 Mbps
• H.264 tipas:  Baseline Profile/Main Profile/High Profile
• H.265 tipas:  Main Profile
• H.264+Main Stream supports
• H.265+Main Stream supports
• Bitų dažnių dažnis:  CBR/VBR
• Srauto tipai:  Main stream/Sub-stream/third stream/fourth stream/fifth stream/custom stream
• SVC  H.265 and H.264 support
• ROI:  4 fixed regions for each stream

Garsas

• Aplinkos triukšmo filtravimas:  Yes
• Garo pavyzdžių ėmimo greitis:  8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Garso suspaudimas:  G.711/G.722.1/G.726/MP2L2/PCM/MP3
• Garso bitų greitis:  64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)
• Garso tipas:  Mono sound

Tinklas

• Tiesioginis vaizdo žiūrėjimas:  Up to 20 channels
• API:  ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• Protokolai:  TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Sklandus srautas:  Yes
• User/Host:  Up to 32 users. 3 user levels: administrator, operator and user
• Apsauga:  Password protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log，TLS 1.2
• Tinklo saugykla:

  microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Klientas:  iVMS-4200, Hik-Connect, Hik-Central
• Interneto naršyklės:

  Plug-in required live view: IE8+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

  Local service: Chrome 41.0+, Firefox 30.0+

Nuotraukos

• Išmanus IR:  The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
• Dienos/Nakties jungiklis:  Day, Night, Auto, Schedule, Triggered by Alarm In
• Elementų išrinkimas:  Yes
• Paveikslėlio perdanga:  LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Vaizdo gerinimas:  BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
• Vaizdo nustatymų jungiklis:  Yes
• Vaizdo nustatymai:  Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR:  ≥52 dB

Sąsaja

• Signalizacija:  2 input, 2 outputs (max. 24 VDC, 1 A)
• Garsas

  Without -R:

  1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

• RS-485:  With -Y: 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Vaizdo išvestis:  1 Vp-p Composite Output(75Ω/CVBS)(For debugging only)
• Vidinė apsauga:  Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Aparatinės įrangos atkūrimas:  Yes
• Bendravimo sąsaja:  1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• Energijos išvestis:  With -Y: 12 VDC, max. 200 mA (supported by all power supply types)
• Šildymas:  Yes

Funkcijos

• Paprastos funkcijos:  Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Išmanios funkcijos

  Line crossing detection, up to 4 lines configurable

  Intrusion detection, up to 4 regions configurable

  Region entrance detection, up to 4 regions configurable

  Region exiting detection, up to 4 regions configurable

  Unattended baggage detection, up to 4 regions configurable

  Object removal detection, up to 4 regions configurable

  Scene change detection, audio exception detection, defocus detection

• Skaičiavimas:  Yes

Gilaus mokymosi funkcija

• Veido atpažinimas

  Detects up to 30 faces simultaneously;

  Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;

  Up to 3 face libraries with up to 30000 faces each are configurable;

  Recognizes face identity via face modeling, grading and comparing to those in face library;

  Supports face library encryption.

• Skirtingų elementų vienu metu atpažinimas

  Supports simultaneous detection of human body and face

  Gets 8 face features and 13 human body features

• Veidų skaičiavimas

  Supports entering/exiting counting (track 30 targets simultaneously);

  Supports facial recognition;

  Supports 24-hour dynamic deduplication and face library deduplication (up to 3 face libraries with up to 30000 faces);

  Supports reporting alarms when detecting the face is the same as that in the face library.

• Šalmų aptikimas

  Detects up to 30 human targets simultaneously

  Supports up to 4 shield regions

• Eilių analizavimas

  Detects queuing-up people number, and waiting time of each person

  Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

  Supports raw data export for further analysis

• Premier apsauga

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

  Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.

Pagrindinis

• Sujungimo metodai

  Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

  Trigger recording: memory card, network storage, pre-record and post-record

  Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email

  Trigger notification: HTTP, ISAPI, alarm output, Email

• Internetiniai atnaujinimai:  Yes
• Dvigubas apsauginės kopijos išsaugojimas:  Yes
• Programinės-aparatinės įrangos versija:  V5.5.121
• Internetinio meniu kalbos:  33 kalbos

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian

• Pagrindinės funkcijos:  Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
• Programinės įrangos atkūrimas:  Yes
• Laikymo sąlygos:  -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Paleidimo ir veikimo sąlygos:  -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Energijos šaltinis:  12 VDC ± 20%, three-core terminal block, reverse polarity protection; PoE：802.3at, Type 2 Class 4
• Energijos suvartojimas ir srovė:

  12 VDC, 1.33 A, max. 16.0 W

  PoE: (802.3at, 42.5V-57V), 0.43 A to 0.31 A, max. 18.0 W

• Energijos gavimo sąsaja:  Three-core terminal block
• Kameros matmenys:

  Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)

  With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)

• Pakuotės matmenys:  405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
• Kameros svoris:  1920 g (4.2 lb.)
• Svoris su pakuote:  3060 g (6.7 lb.)
