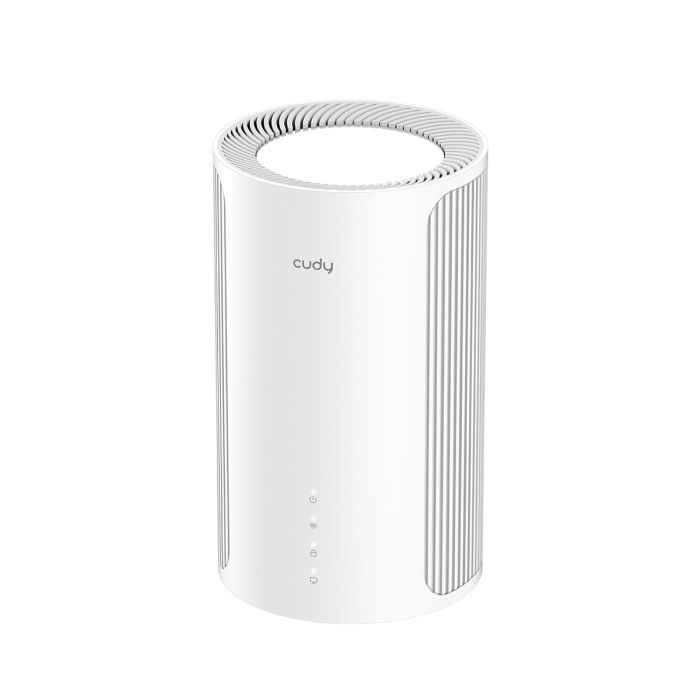

Wi-Fi Mesh sistema Cudy M11000 1.0

Aprašymas

Modelis: M11000 (BE11000)
Wi-Fi standartas: Wi-Fi 7 (802.11be)
CPU: Qualcomm IPQ5322, 1.5 GHz Quad-Core ARM Cortex-A53
Flash/ROM: 128 MB (1 Gbit) NAND
RAM: 512 MB (4 Gbit) DDR4
Wi-Fi Speed (6 GHz): 5765 Mbps
Wi-Fi Speed (5 GHz): 4324 Mbps
Wi-Fi Speed (2.4 GHz): 688 Mbps
Wi-Fi Streams: 2×2 MIMO on all bands (6 GHz, 5 GHz, 2.4 GHz)
Antenna Configuration: 6× fixed antennas
Antenos stiprinimas: 6 GHz: 4 dBi, 5 GHz: 5 dBi, 2.4 GHz: 5.5 dBi
High-Power FEM: 6 GHz: 2× high-power, 5 GHz: 2× high-power, 2.4 GHz: 2× standard
Max Coverage: 2-pack: 250 m² (2700 sq ft), 3-pack: 350 m² (3700 sq ft)
Maksimalus nuotolis: 260 m (853 ft)
Wi-Fi ypatybės: MLO, 4K-QAM, 320 MHz bandwidth, Multi-RUs, Beamforming, OFDMA, MU-MIMO, BSS Coloring
Max Clients: 768 (recommended 300)
Max Channel Width: 320 MHz
Wi-Fi saugumas: WPA/WPA2/WPA3
Svečių tinklas: Supported (2.4 GHz, 5 GHz, 6 GHz)
Ethernet prievadai: 4× 2.5G RJ45 (1× WAN + 3× LAN)
Maitinimo įėjimas: DC 12V 2A
Energijos suvartojimas: Max 22W, Idle 12W
Montavimas: Type: Desktop, Dimensions: Φ116×202 mm (4.57×7.95 inches)
Darbinė temperatūra: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Laikymo temperatūra: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Drėgmė: Operating: 10% ~ 90% non-condensing, Storage: 5% ~ 95% non-condensing
Mesh System: Cudy Mesh with support for Wireless and Wired Backhaul
Operation Modes: Wi-Fi Router, Access Point, Range Extender, WISP, Client
WAN tipai: DHCP, Static IP, PPPoE, PPTP, L2TP
IPv6 Support: Dynamic (SLAAC/DHCPv6), Static, Passthrough, 464XLAT, MAP-E, DS-Lite
VPN palaikymas: Client & Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
Užkarda: SPI Firewall, DoS Protection, DMZ, Port Forwarding, Port Triggering
Application Layer Gateway: SIP, FTP, TFTP, H323, RTSP, IGMP Proxy/Snooping
Tėvų kontrolė: Content filtering, Internet schedule, Online time control
Paslaugų kokybė (QoS): Per-user rate limiting, device prioritization
Valdymas: Cloud app, Web UI (HTTPS), Local control, Firmware OTA updates
Diagnostikos įrankiai: Ping, Traceroute, NSLookup, System Log
LED indikatoriai: System, LAN, Wi-Fi, Mesh
Languages Supported: 30+ languages including English, Spanish, German, French, Chinese, etc.
Sertifikatai: FCC, CE
Pakuotės turinys: Main unit, Power adapter, Ethernet cable, Installation guide
