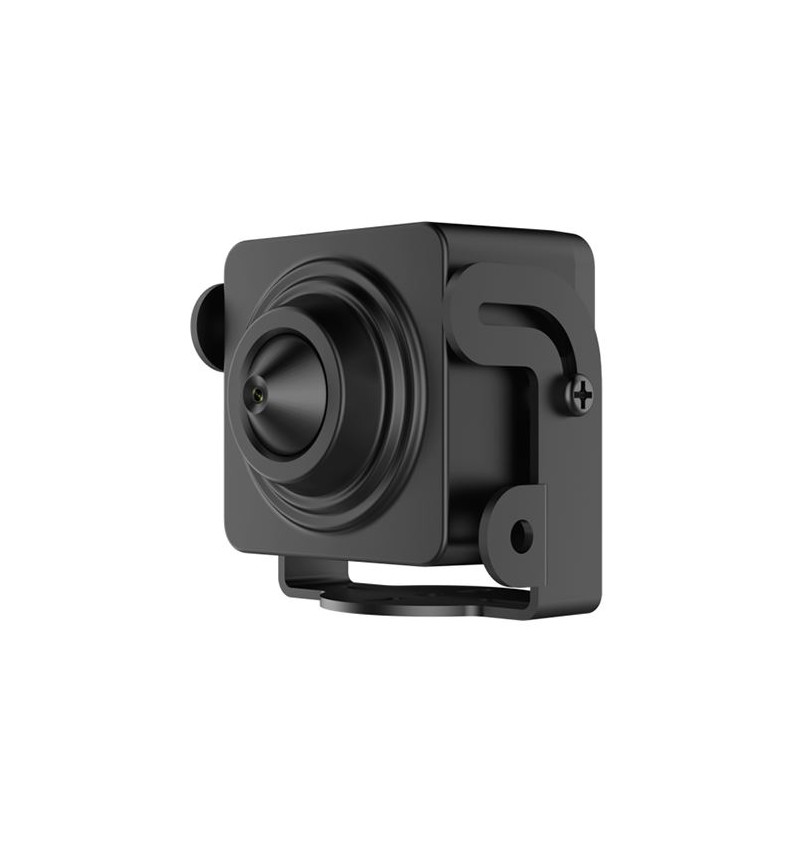

Hikvision pinhole DS-2CD2D21G0-D/NF F3.7
- Hikvision DS-2CD2D21G0-D/NF F3.7, 2MP kamera
- EasyIP 1.0
- PINHOLE
- H.265+/MJPEG;
- 3.7mm (78°); 120dB WDR; 3D DNR/ROI;12V
182,59€ (su PVM)
Išankstinis užsakymas
Išankstinis užsakymas
Aprašymas
| Kamera | |
|---|---|
| Sensorius: | 1/2.7” Progressive Scan CMOS |
| Signalas: | PAL/NTSC |
| Min. apšvietimas: | Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux @ (F2.5, AGC ON) B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux @ (F2.5, AGC ON) |
| Užrakto laikas: | 1/3 s to 1/100,000 s |
| Išlaikymas: | Support |
| Objektyvas: | 3.7 mm |
| Montavimas: | M12 |
| Valdymo sritis: | horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 90° |
| Diena/naktis: | Electronic |
| WDR: | 120 dB |
| Fokusavimas: | Fixed |
| Suspaudimo standartas | |
| Vaizdo suspaudimas: | H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 kodas: | Baseline Profile/Main Profile/High Profile |
| Vaizdo sparta: | 32Kbps~8Mbps |
| Antrinis srautas: | Yes |
| Tretinis srautas: | Yes |
| Image | |
| Maks. raiška: | 1920 x 1080 |
| Vaizdo dažnis: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Antrinis srautas: | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Tretinis srautas: | 50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480) |
| Vaizdo kokybės gerinimas: | 3D DNR |
| 3D DNR: | Support |
| ROI: | Support 1 fixed region for main stream, sub-stream and third stream |
| Perjungimas Diena/Naktis: | Day/Night/Auto/Schedule |
| Tinklas | |
| Saugykla: | NAS (Support NFS,SMB/CIFS) |
| Pavojaus signalas: | Motion detection, video tampering alarm, illegal login |
| Protokolai: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Pagrindinės funkcijos: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering |
| Suderinamumas: | ONVIF (Profile S, Profile G), ISAPI |
| Išmaniosios sąvybės | |
| Elgesio analizė: | Line crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection |
| Sąsaja | |
| Ryšio sąsaja: | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Garsas: | 1 input (line in) |
| Perkrovimo mygtukas: | Yes |
| Išmanios savybės | |
| Elgesio analizė: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Linijos kirtimo nustatymas: | Cross a pre-defined virtual line |
| Įsiveržimo aptikimas: | Enter and loiter in a pre-defined virtual region |
| Nustatyto regiono kirtimas: | Enter a pre-defined virtual region from the outside place |
| Nustatyto regiono palikimas: | Exit from a pre-defined virtual region |
| Palikti daiktai: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Ojekto pašalinimas: | Objects removed from the pre-defined region, such as the exhibits on display. |
| Išimčių aptikimas: | Scene change detection, defocus detection |
| Atpažinimas: | Face Detection |
| Pagrindinės sąvybės | |
| Veikimo sąlygos: | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Maitinimas: | 12 VDC ± 20%, Φ 5.5 mm coaxial plug power |
| Suvartojimas: | 12 VDC, 0.3 A, max. 3 W |
| Išmatavimai: | Without /M model: 31 mm × 31 mm × 26 mm (1.2″ × 1.2″ × 1″) With /M model: 31 mm × 31 mm × 39 mm (1.2″ × 1.2″ × 1.5″) |
| Svoris: | With package: approx. 202 g (0.4 lb.) Camera: approx. 93 g (0.2 lb.) |
Papildoma informacija
| Gamintojas | HIKVISION |
|---|---|
| Kameros raiška | 2MP |
