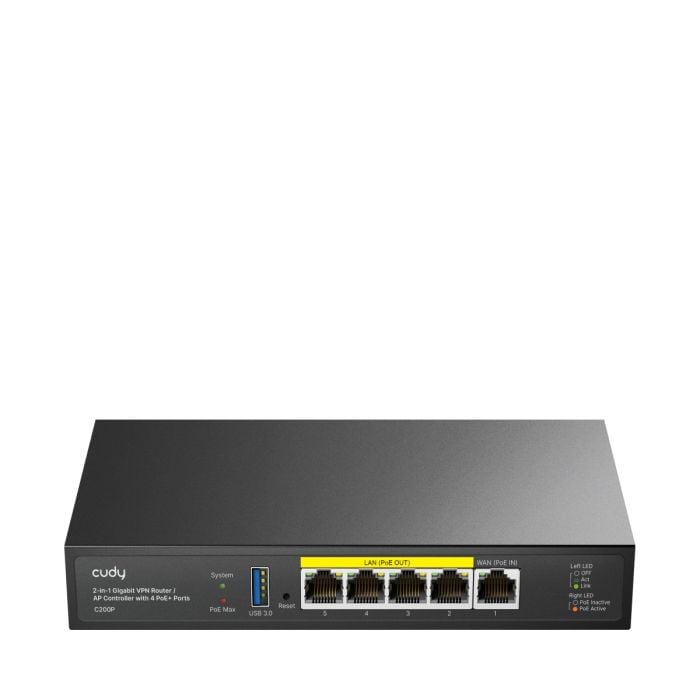

VPN maršrutizatorius ir AP valdiklis Cudy C200P

Aprašymas

Modelis: C200P
Įrenginio tipas: 2-in-1 Gigabit VPN Router / AP Controller with 4 PoE+ Ports
PoE prievadai: 4× GbE with 802.3at/af Mode A PoE (Ports 2–5)
WAN prievadai: 1× Gigabit Ethernet Port
USB prievadai: 1× USB 3.0 Port
PoE maitinimo biudžetas: 60W total (max 30W per port); 55W total when USB is in use
Procesorius: MT7621A, 880 MHz Dual-Core
Flash/ROM: 16 MB NOR
RAM: 256 MB DDR3
Maksimalus energijos suvartojimas: 60W
Budėjimo režimo energijos sąnaudos: 2W
PoE Power Consumption (Idle/Active): 5W (No PoE), 50W (USB active), 55W (USB idle)
Maitinimo šaltinis: Input: 100–240 V AC, Output: 54V 1.11A DC
Maitinimo įvesties metodas: DC Jack, Passive PoE (24/48V), 802.3at/af PoE
Matmenys: 190×100×28 mm / 7.48×3.94×1.1 inches
Svoris: Not specified
Korpuso medžiaga: Metal
Tvirtinimo parinktys: Desktop, Wall-mount
Darbinė temperatūra: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Sandėliavimo temperatūra: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Darbo drėgmė: 5% to 95% RH (non-condensing)
Laikymo drėgmė: 0% to 100% RH (non-condensing)
Įžeminimo metodas: Grounding point available
Sertifikatai: FCC, CE, IEC/EN 61000-4-2 (6kV contact / 8kV air ESD)
LED indikatoriai: System, PoE Max, Link/ACT/PoE status of each port
Atstatymo mygtukas: Yes
WAN režimai: DHCP, Static IP, PPPoE
IPv6 palaikymas: Dynamic (SLAAC/DHCPv6), Static, Passthrough, 464XLAT, MAP-E, DS-Lite
Max APs Supported: 10 in Router mode, 200 in AP controller mode
Max Clients Supported: 100 in Router mode, unlimited in AP controller mode
Captive Portal: Supported
Multi-SSID: Up to 4 SSIDs per band
Centralized AP Management: Supported
Paslaugų kokybė (QoS): Rate Limiting, Address Reservation, DHCP Server/Client List
Užkarda: SPI, DoS Protection, Port Forwarding, Triggering, DMZ, Block PING
VPN Server Support: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Client Support: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Throughput: WireGuard: up to 233.9 Mbps, OpenVPN: up to 24.7 Mbps
Content Management: MAC Filter, Domain/IP Filter, IP/MAC Binding, Online Schedule, VPN Toggle
DNS Features: DNS over TLS, Manual DNS, Override Clients’ DNS, Rebind Protection (Cloudflare, Google, Quad9)
USB Functions: Samba Server, Wake-on-LAN
System Management: Config Web (HTTPS), Local & Remote Control, TR069/TR098/TR111/TR181, Backup/Restore
Diagnostics: Diagnosis, Ping, Traceroute, NSLookup, System Log
Languages: English, Spanish, German, French, Chinese (Simplified), and 20+ more
Dashboard Monitoring: Internet, WAN, LAN, VPN, DHCP Server, AP Management, System Version
Pakuotės turinys: C200P, Power Adapter, Ethernet Cable, Installation Guide, Mounting Kit
