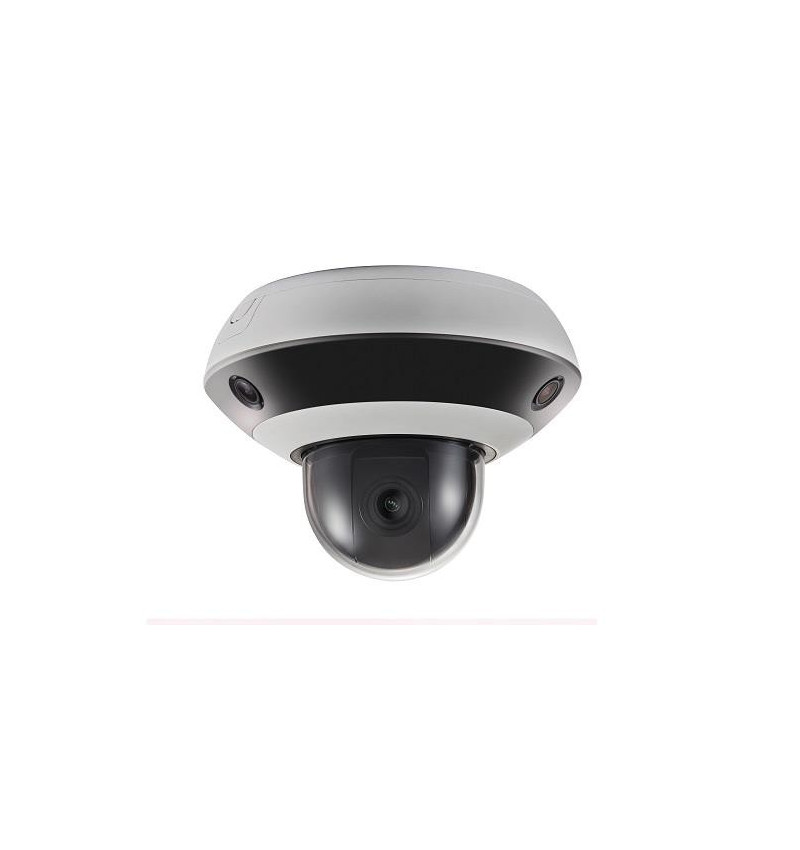

Hikvision PanoVu DS-2PT3326IZ-DE3
- Panoraminė PTZ PanoVu kamera
- 3x 2MP 360° panorama + 2MP Zoom 4x
- Optinis WDR / 3D DNR
- Smart patruliavimo funkcijos
- MicroSD iki 128 GB
963.57€ (su PVM)
Išankstinis užsakymas
Išankstinis užsakymas
Aprašymas
| Panoramic Camera | |
|---|---|
| Image Sensor: | Three 1/2.8\” Progressive Scan CMOS |
| Max. Image Resolution: | 3X 2MP lens |
| Min. Illumination: | Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR |
| Lens: | 2.0mm/ F1.6 |
| Angle of View: | Horizontal: 130° |
| Audio Exception Detection: | Support |
| Main Stream: | 16:9 50Hz: 25fps (1920×1080,1280×960,1280×720, 704×576,640×480,352×288) , 60Hz: 25fps(1920×1080,1280×960,1280×720, 704×480,640×480,352×240) , |
| Image Compression: | H.265/H.264/MJPEG |
| Others: | 20m IRm, 3D DNR, HLC, Motion Detection, Video Tampering Detection |
| Tracking PTZ Camera | |
| Image Sensor: | 1/2.8\” Progressive Scan CMOS |
| Max. Image Resolution: | 2MP |
| Min. Illumination: | Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR |
| Focal Length: | 2.8 to 12mm, 4× optical zoom |
| Min. Working Distance: | 10mm to 1500mm (Wide-Tele) |
| Main Stream: | 16:9 50Hz: 25fps (1920×1080,1280×960,1280×720, 704×576,640×480,352×288) , 60Hz: 25fps(1920×1080,1280×960,1280×720, 704×480,640×480,352×240) , |
| Image Compression: | H.265/H.264/MJPEG |
| Others: | Optical WDR, Digital Defog, HLC, Smart IR, EIS, 3D DNR |
| Pan and Tilt (Tracking PTZ Camera) | |
| Range: | Pan: 350°, Tilt: 0° to 90° |
| Speed: | Pan Manual Speed: 0.1°/s to 30°/s (Configurable), Pan Preset Speed: 30°/s Tilt Manual Speed: 0.1°/s to 30°/s (Configurable), Tilt Preset Speed: 30°/s |
| Number of Preset: | 300 |
| Patrol: | 8 patrols, up to 32 presets per patrol |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Park Action: | Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan |
| Scheduled Task: | Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/
Dome Reboot/ Dome Adjust/ Aux Output |
| Power-off memory: | Support |
| System Integration | |
| Ethernet: | 1 RJ45 10 M/100 M Ethernet Interface/PoE+ |
| Onboard Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC (up to 128GB) |
| General | |
| Power : | DC12V/PoE |
| Working Temperature/ Humidity: | Indoor: -10°C to 50°C/≤ 90% |
| Protection Level: | IP54 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions(mm): | 128.6 mm × Φ183 mm |
| Weight: | 0.93kg |
Papildoma informacija
| Gamintojas | HIKVISION |
|---|
