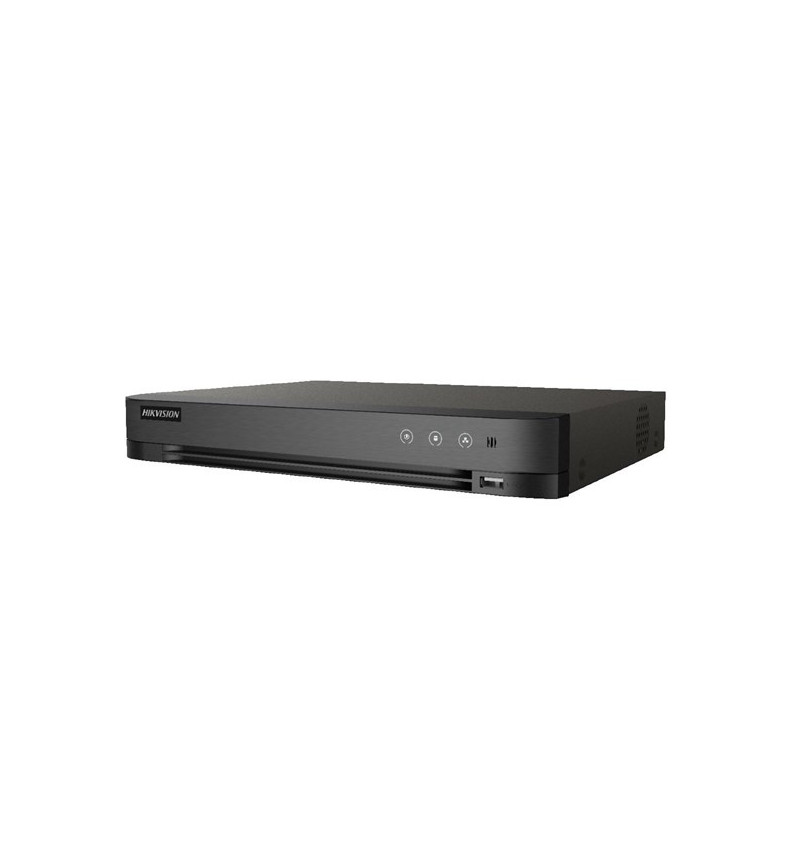

Hikvision DS-7216HQHI-K2/P, 16 kanalų DVR

Aprašymas

Recording

• Video Compression:  H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution:  When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,

• Frame Rate:  Main stream: When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p @15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:  4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),  Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),

• Video Bit Rate: 32 Kbps to 6 Mbps
• Dual Stream:  Support
• Stream Type:  Video, Video & Audio
• Audio Compression:  G.711u
• Audio Bit Rate:  64 Kbps

Video And Audio

• IP Video Input:  8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input:  16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input:  4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input:  1080p25, 1080p30, 720p25, 720p30
• CVBS Input:  PAL/NTSC
• Audio Input:  1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output:  1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio:  1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback:  16-ch
• HDTVI Input:  4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1/P, channel 1/2 of DS-7208HQHI-K2/P, and channel 1/2/3/4 of DS-7216HQHI-K2/P.
• VGA/HDMI Output:  VGA: 1-ch, ,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz,HDMI: 1-ch, ,4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, ,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz,
• PoC Camera Input:  Support Hikvision PoC camera *: PoC access capability see Appendix.
• CVBS Output:  1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480

Network

• Remote Connections:  128
• Network Protocols:  TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface:  1  RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,

Auxiliary Interface

• SATA:  2 SATA interfaces
• Capacity:  Up to 10 TB capacity for each disk
• Alarm In/Out:  N/A
• USB Interface:  Front panel: 1 × USB 2.0 ,Rear panel: 1 × USB 3.0
• Serial Interface:  RS-485 (half-duplex)

General

• Power Supply:  48 VDC
• Working Temperature:  -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity:  10% to 90%
• Dimensions (W × D × H):  380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weights (Without HDD):  ≤ 2 kg (4.4 lb)
• Consumption (Without HDD):  ≤ 120 W
